Products Description1060 1050 high quality aluminum discs for lighting and lamps industry with excellent reflective performance H14
Excellent reflective performance, improve light source utilization
through precision polishing and anodizing process, the reflectivity of the aluminum disc surface can reach more than 85%, and some high-end models can even reach 90%. After being made into lampshades or reflective parts, it can minimize light loss, enhance the intensity and range of light illumination, and help lighting products achieve higher brightness under the same light source power and reduce energy consumption.
Good molding performance, adapt to complex modeling requirements
The elongation of aluminum discs can reach more than 35%, and it is not easy to crack, wrinkle and other problems during stretching, stamping and other processing, which can meet the production needs of various special-shaped lampshades. Whether it is a curved lampshade or a reflective structure with complex patterns, it can be precisely molded, providing more possibilities for lamp design.
Strong weather resistance, adapt to various environments
After special anti-corrosion treatment, aluminum discs can still maintain stable performance in humid, high temperature and other environments, and the salt spray test can reach more than 500 hours without rust. When used in outdoor street lamps, bathroom lamps and other scenes, it can effectively resist environmental erosion, extend the service life of lamps and reduce maintenance costs.
Light weight and easy installation
Compared with other metal discs of the same specification, our aluminum discs are more than 30% lighter, and the lamp parts made of them can significantly reduce the overall weight. This not only facilitates the transportation and installation of lamps, but also reduces the load-bearing pressure of the mounting bracket, improves the safety of use, and is especially suitable for large-scale outdoor lighting projects.
Products Specifications
| Parameter | Specification |
| Product Name | Aluminum Circle / Aluminum Disc |
| Standard | GB/T3880, ASTM, B209 |
| Series | 1050, 1060, 1100, 3003, 5052, 5083, 5754, 6061, etc |
| Temper | O-H112,T3-T8, etc |
| Process | Hot rolled (DC) or Cold rolled (CC) |
| Thickness | 0.12-6.0mm or customized |
| Diameter | 90mm -1010mm or customized |
| Tolerance | ±1% |
| MOQ | 1 Ton |
| Sample | 1-2 pieces of free samples available |
| Appearance | Flat, clean surface without scratches, cutting edge no burrs |
Products Details

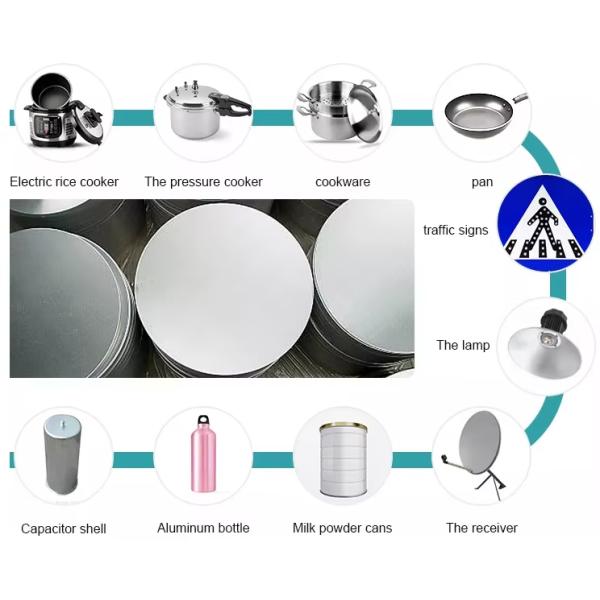

Application
